Stream call audio

Call streaming sends the audio of a live call to a WebSocket server you run, so your app can transcribe, analyze, record, or answer it in near real time. Start by streaming a call to your own phone into a small server that prints what arrives, then save or process the audio, and talk back to the caller on a bidirectional stream.

Choose an approach

Each approach starts and stops streams in its own way. All of them stream to the same kind of WebSocket server, so the server code on this page works with every approach. Follow the section for your app’s approach:

• SWML: answer calls to your number with a document your server serves. Add stream for a one-way stream, or connect the call to your server for a bidirectional stream. Optionally send stream events to a webhook.
• WebSocket (Relay): start and stop a stream from code that holds a connection to the call. Stream events arrive in your code, so no webhook is needed.
• REST: start and stop a one-way stream by call ID from any process.

Prepare for streaming

Start with working call setup from Make and receive calls. Have these values ready:

• Your Space URL, such as <YOUR_SPACE>.signalwire.com.
• Your Project ID and an API token with the Voice permission.
• A phone number in your Space, and a phone you can call it from and answer.
• A machine that can run a small server, and a tunnel such as ngrok that gives it a public URL.

Replace these values in the samples you run:

How call streaming works

When a stream starts, SignalWire opens a WebSocket connection to your server and sends it the call’s audio as the call happens, in 20 ms frames. What happens to the audio next is up to your server. It can:

• Save it to a file, as a recording you control.
• Forward it to another service, such as a speech-to-text or sentiment API, and act on what comes back.
• Send audio back into the call, such as a recorded prompt or the output of a voice agent.

Sending audio back needs a bidirectional stream. A one-way stream gives your server a copy of the call’s audio while the call carries on as normal, and anything your server sends is ignored. A bidirectional stream connects the call to your server as if the server were the other party: the caller hears what your server sends, and the call stays connected to your server until your server closes the connection or the call ends.

SignalWire sends the same messages whichever approach starts the stream, so one server works with all of them. A call can run several one-way streams at once, each with its own control_id.

Run a WebSocket server

Every stream in this guide connects to a server you run, at the /stream path. Start with one that prints what arrives, so you can see a stream working before you write any processing code.

# Install: python -m pip install fastapi "uvicorn[standard]"
# Save as stream_server.py and run: python stream_server.py
import json
import uvicorn
from fastapi import FastAPI, WebSocket
app = FastAPI()
FRAMES_PER_SECOND = 50  # each media message carries 20 ms of audio
@app.websocket("/stream")
async def stream(websocket: WebSocket):
    await websocket.accept()
    frames = {}
    async for message in websocket.iter_text():
        event = json.loads(message)
        if event["event"] == "start":
            start = event["start"]
            media_format = start["mediaFormat"]
            print(f"Stream started for call {start['callSid']}: tracks {start['tracks']}, "
                  f"{media_format['encoding']} at {media_format['sampleRate']} Hz")
        elif event["event"] == "media":
            track = event["media"]["track"]
            frames[track] = frames.get(track, 0) + 1
            if frames[track] % FRAMES_PER_SECOND == 0:
                print(f"{track}: {frames[track] // FRAMES_PER_SECOND} s of audio")
        elif event["event"] == "stop":
            print("Stream stopped")
uvicorn.run(app, host="0.0.0.0", port=8080)

ngrok http 8080

Run an echo server for bidirectional streams

A bidirectional stream needs a server that sends audio back. This one returns each media payload unchanged, so the caller hears their own voice a moment later. It confirms that audio flows in both directions before you plug in a real speech pipeline. Run it in place of the stream server, on the same port and tunnel, when you reach a “Talk back” section.

# Install: python -m pip install fastapi "uvicorn[standard]"
# Save as echo_server.py and run: python echo_server.py
import json
import uvicorn
from fastapi import FastAPI, WebSocket
app = FastAPI()
@app.websocket("/stream")
async def stream(websocket: WebSocket):
    await websocket.accept()
    stream_sid = None
    async for message in websocket.iter_text():
        event = json.loads(message)
        if event["event"] == "start":
            stream_sid = event["start"]["streamSid"]
            print(f"Echoing stream {stream_sid}")
        elif event["event"] == "media":
            await websocket.send_text(json.dumps({
                "event": "media",
                "streamSid": stream_sid,
                "media": {"payload": event["media"]["payload"]},
            }))
        elif event["event"] == "stop":
            print("Stream stopped")
uvicorn.run(app, host="0.0.0.0", port=8080)

Stream call audio via SWML

SWML has two ways to stream a call, one for each type of stream:

• To record, transcribe, or analyze a call while it carries on as normal, use stream. It starts a one-way stream and moves on to the next method at once, so the rest of the document runs while audio streams.
• To put your own voice agent or speech pipeline on the call, use connect with to set to stream:<URL>. It bridges the call to your server for a bidirectional stream, and the document waits there until the stream ends.

Stream a call via SWML

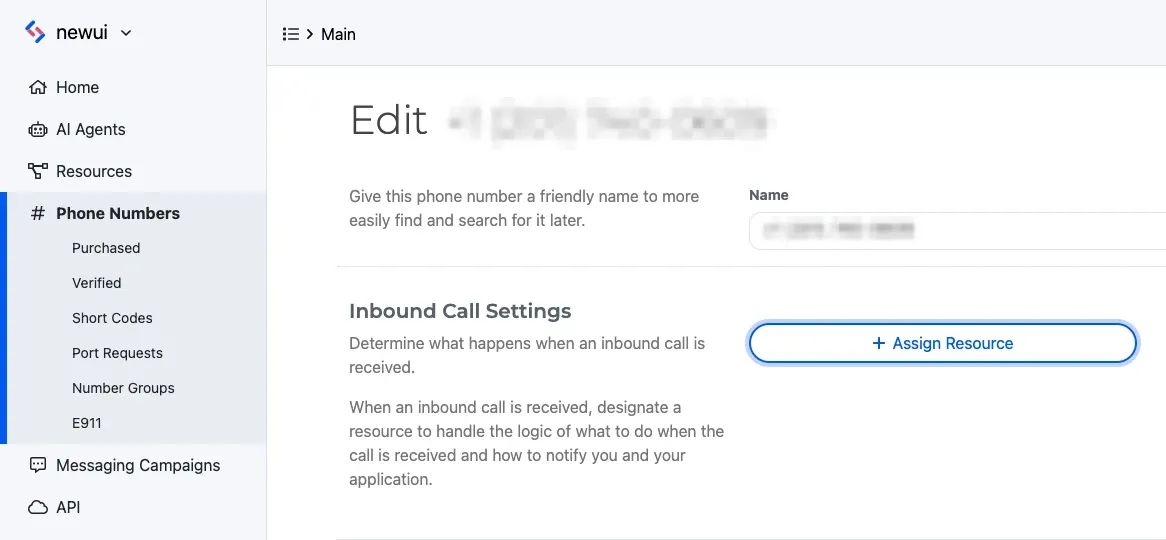

When someone calls your number, SignalWire fetches the call’s SWML from your server and runs it. Your server can serve that document and accept the stream on the same port, so the one tunnel from Run a WebSocket server covers both.

# Install: python -m pip install signalwire-sdk==3.4.1
# Save as stream_app.py and run: python stream_app.py
import json
import uvicorn
from fastapi import FastAPI, WebSocket
from signalwire import SWMLBuilder, SWMLService
service = SWMLService(
    name="stream-call",
    basic_auth=("signalwire", "<YOUR_BASIC_AUTH_PASSWORD>"),
    schema_validation=False,
)
swml = SWMLBuilder(service)
service.add_verb("stream", {"url": "<YOUR_AUDIO_STREAM_URL>"})
swml.say("Your call is being streamed. Say a few words.").sleep(20000).say("Goodbye.")
app = FastAPI()
# SignalWire fetches the call's SWML from the server's root URL.
app.include_router(service.as_router())
FRAMES_PER_SECOND = 50  # each media message carries 20 ms of audio
# SignalWire streams the call's audio to /stream.
@app.websocket("/stream")
async def stream(websocket: WebSocket):
    await websocket.accept()
    frames = {}
    async for message in websocket.iter_text():
        event = json.loads(message)
        if event["event"] == "start":
            start = event["start"]
            media_format = start["mediaFormat"]
            print(f"Stream started for call {start['callSid']}: tracks {start['tracks']}, "
                  f"{media_format['encoding']} at {media_format['sampleRate']} Hz")
        elif event["event"] == "media":
            track = event["media"]["track"]
            frames[track] = frames.get(track, 0) + 1
            if frames[track] % FRAMES_PER_SECOND == 0:
                print(f"{track}: {frames[track] // FRAMES_PER_SECOND} s of audio")
        elif event["event"] == "stop":
            print("Stream stopped")
uvicorn.run(app, host="0.0.0.0", port=8080)

curl -u "signalwire:<YOUR_BASIC_AUTH_PASSWORD>" "https://<YOUR_PUBLIC_HOST>/"

Stream started for call 76ac3c36-56da-4a3e-a0d6-b5f8df6da9ad: tracks ['inbound'], audio/x-mulaw at 8000 Hz
inbound: 1 s of audio
inbound: 2 s of audio

The same document in YAML, to paste into a hosted SWML Script instead:

version: 1.0.0
sections:
  main:
    - stream:
        url: <YOUR_AUDIO_STREAM_URL>
    - play:
        url: say:Your call is being streamed. Say a few words.
    - sleep: 20000
    - play:
        url: say:Goodbye.

Talk back on a bidirectional stream via SWML

This document plays an announcement, connects the call to your server’s /stream route, and hangs up once your server closes the connection. In your SWML server, replace the document with this one, and the /stream handler with the echo server’s. Set to to your stream URL with a stream: prefix. The stream’s settings, such as codec, realtime, and name, sit alongside to.

swml = SWMLBuilder(service)
(
    swml.say("You are connected to the echo server. Speak, and you will hear yourself.")
    .connect(to="stream:<YOUR_AUDIO_STREAM_URL>", codec="PCMU", realtime=True, name="echo")
    .hangup()
)

Call your number and speak. You hear the announcement, then your own voice echoed back a moment after you say each word. Hang up to end the call; the server prints Stream stopped.

When your server closes the connection, connect finishes and the document continues with the next method, here hangup. Put a play or any other method there to keep the call going instead. To stream a whole conference in both directions, give join_conference a stream object; its reference lists the settings it accepts.

Stop a stream via SWML

A one-way stream runs until the call ends unless you stop it. Give stream a control_id, and run stop_stream with the same value when your server has what it needs. In your SWML server, replace the document lines with these to stop the stream after twenty seconds and keep the call open:

service.add_verb("stream", {"url": "<YOUR_AUDIO_STREAM_URL>", "control_id": "my-stream"})
swml.say("Your call is being streamed. Say a few words.").sleep(20000)
service.add_verb("stop_stream", {"control_id": "my-stream"})
swml.say("The stream has stopped. Goodbye.")

The server prints Stream stopped before you hear “The stream has stopped.” Omit control_id in both places to stop the most recently started stream. A bidirectional stream has no stop_stream; your server ends it by closing the connection.

Track a stream via SWML

Add status_url to stream to receive a JSON webhook when the stream starts and another when it finishes. On a stream: connect, status_url must be an https:// URL; it is notified only if the stream connects. See the webhooks guide for endpoint setup and testing.

{
  "event_type": "calling.call.stream",
  "params": {
    "call_id": "2e1e66e5-5d07-413d-9668-55542992eec0",
    "control_id": "my-stream",
    "state": "streaming",
    "url": "wss://example.com/audio-stream"
  }
}

On a one-way stream, streaming means SignalWire started the stream, not that your server accepted the connection, so confirm the connection from your server’s output. The stream status callback reference lists every field.

Stream call audio via WebSocket (Relay)

Start a one-way stream on an answered call with call.stream(). It returns a stream action that keeps the control_id for you; call its stop() method to end the stream. For a bidirectional stream, pass a device of type stream to call.connect(). It must be the only device in the list.

Stream a call via WebSocket (Relay)

Dial your phone, start a stream, and keep the call open for twenty seconds while you talk. Call setup follows Place a call via WebSocket (Relay).

# Install: python -m pip install signalwire-sdk==3.4.1
# Save as stream_call_relay.py and run: python stream_call_relay.py
import asyncio
from signalwire.relay import RelayClient
client = RelayClient(
    project="<YOUR_PROJECT_ID>",
    token="<YOUR_API_TOKEN>",
    host="<YOUR_SPACE>.signalwire.com",
    contexts=["default"],
)
async def main():
    async with client:
        call = await client.dial(
            devices=[[{
                "type": "phone",
                "params": {
                    "from_number": "<YOUR_CALLER_ID>",
                    "to_number": "<YOUR_DESTINATION>",
                    "timeout": 30,
                },
            }]],
        )
        await call.stream(url="<YOUR_AUDIO_STREAM_URL>")
        await call.play([{
            "type": "tts",
            "params": {"text": "Your call is being streamed. Say a few words."},
        }])
        await asyncio.sleep(20)
        async def hang_up_after_playback(_event):
            if call.state != "ended":
                await call.hangup()
        await call.play(
            [{"type": "tts", "params": {"text": "Goodbye."}}],
            on_completed=hang_up_after_playback,
        )
        await call.wait_for_ended()
asyncio.run(main())

Talk back on a bidirectional stream via WebSocket (Relay)

Run the echo server instead of the stream server. This program dials, plays an announcement, then connects the call to your server through a stream device. connect() returns as soon as SignalWire accepts the request, so the program follows the bridge through calling.call.connect events and hangs up when the bridge ends.

# Install: python -m pip install signalwire-sdk==3.4.1
# Save as echo_call_relay.py and run: python echo_call_relay.py
import asyncio
from signalwire.relay import ConnectEvent, RelayClient
client = RelayClient(
    project="<YOUR_PROJECT_ID>",
    token="<YOUR_API_TOKEN>",
    host="<YOUR_SPACE>.signalwire.com",
    contexts=["default"],
)
async def main():
    async with client:
        call = await client.dial(
            devices=[[{
                "type": "phone",
                "params": {
                    "from_number": "<YOUR_CALLER_ID>",
                    "to_number": "<YOUR_DESTINATION>",
                    "timeout": 30,
                },
            }]],
        )
        async def on_connect(event: ConnectEvent):
            print(f"Stream bridge: {event.connect_state}")
            # The bridge ends when your server closes the connection.
            if event.connect_state in ("disconnected", "failed") and call.state != "ended":
                await call.hangup()
        call.on("calling.call.connect", on_connect)
        announcement = await call.play([{
            "type": "tts",
            "params": {"text": "You are connected to the echo server. Speak, and you will hear yourself."},
        }])
        await announcement.wait()
        await call.connect(
            devices=[[{
                "type": "stream",
                "params": {
                    "url": "<YOUR_AUDIO_STREAM_URL>",
                    "codec": "PCMU",
                    "realtime": True,
                    "name": "echo",
                },
            }]],
        )
        await call.wait_for_ended()
asyncio.run(main())

Answer and speak to hear your voice echoed back. The program prints connected while audio flows, then disconnected when you hang up, or failed if SignalWire couldn’t reach your URL.

The call stays bridged to your server until your server closes the connection or the call ends. This program hangs up when the bridge ends; to keep the call going instead, play audio or connect it elsewhere.

Stop a stream via WebSocket (Relay)

Keep the action that call.stream() returns, and call its stop() method when your server has what it needs. In the Stream a call via WebSocket (Relay) program, replace the stream and sleep lines with these:

stream = await call.stream(url="<YOUR_AUDIO_STREAM_URL>")
await call.play([{
    "type": "tts",
    "params": {"text": "Your call is being streamed. Say a few words."},
}])
await asyncio.sleep(20)
await stream.stop()

To stop a stream from a process that doesn’t hold the call, use the REST calling.stream.stop command with the stream’s control_id, which the action exposes as control_id in Python and controlId in TypeScript.

Track a stream via WebSocket (Relay)

Stream events arrive in your code over the same connection:

To log one-way stream events, register a handler before you call call.stream():

from signalwire.relay import StreamEvent
def on_stream(event: StreamEvent):
    print(f"Stream {event.control_id} is {event.state}")
call.on("calling.call.stream", on_stream)

As with the SWML webhook, streaming means SignalWire started the stream, not that your server accepted the connection.

Stream a call already in progress via REST

When a process that doesn’t hold the call needs to stream it, send the calling.stream command with the answered call’s ID, a control_id, and the stream’s url. The call ID is the id from the dial response, or the call_id delivered to your SWML endpoint or status webhook. To try it, make a call from the first run, and while it’s up, run this program with the call ID your stream server printed. The Server SDKs wrap both commands; this program streams the call for ten seconds, then sends calling.stream.stop with the same control_id:

# Install: python -m pip install signalwire-sdk==3.4.1
# Save as stream_rest.py and run: python stream_rest.py
import time
from signalwire.rest import RestClient
client = RestClient(
    project="<YOUR_PROJECT_ID>",
    token="<YOUR_API_TOKEN>",
    host="<YOUR_SPACE>.signalwire.com",
)
client.calling.stream(
    "<YOUR_CALL_ID>",
    url="<YOUR_AUDIO_STREAM_URL>",
    control_id="rest-stream",
)
time.sleep(10)
client.calling.stream_stop("<YOUR_CALL_ID>", control_id="rest-stream")
print("Stream stopped")

The server prints a second started line for the REST stream, and Stream stopped ten seconds later while the call carries on. The other stream settings, such as track, codec, and status_url, sit alongside url. In Python, pass status_url through extras.

The command doesn’t echo the control_id, so keep the value you sent. To call the REST API directly, send these requests to Call commands:

curl -X POST https://{your_space_name}.signalwire.com/api/calling/calls \
     -H "Content-Type: application/json" \
     -u "<project_id>:<api_token>" \
     -d '{
  "command": "calling.stream",
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
  "params": {
    "control_id": "stream-control-1",
    "url": "wss://example.com/stream",
    "track": "inbound_track"
  }
}'

curl -X POST https://{your_space_name}.signalwire.com/api/calling/calls \
     -H "Content-Type: application/json" \
     -u "<project_id>:<api_token>" \
     -d '{
  "command": "calling.stream.stop",
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
  "params": {
    "control_id": "stream-control-1"
  }
}'

calling.stream.stop stops one-way streams only. A bidirectional stream ends when your server closes the WebSocket.

Handle stream audio on your server

The stream server prints what arrives; a real app decodes it. This section covers the messages in full, the stream settings that shape the audio, and two servers you can swap in for the stream server: one saves the audio and one processes it as it arrives. Both work with the calls above unchanged. If your server also serves your SWML, keep its SWML lines and replace only the /stream handler.

Messages your server receives

SignalWire sends each message as JSON text. Every message has an event field that names its type, so your server parses each message and branches on event. Every message after connected also carries a sequenceNumber, a string counter that starts at "1" and increments with each message on the connection.

Set up your per-stream state on start:

{
  "event": "start",
  "sequenceNumber": "1",
  "start": {
    "streamSid": "7d56cc11-536d-4a45-b4fb-ed3d55be843b",
    "callSid": "76ac3c36-56da-4a3e-a0d6-b5f8df6da9ad",
    "tracks": ["inbound", "outbound"],
    "customParameters": {"session_id": "abc123"},
    "mediaFormat": {"encoding": "audio/x-mulaw", "sampleRate": 8000, "channels": 2}
  }
}

• streamSid identifies the stream. Each stream gets its own connection, so a server handling many calls tells them apart by it. Send it back on every message to a bidirectional stream.
• callSid is the ID of the call being streamed.
• tracks lists the tracks that will arrive: inbound, outbound, or both.
• mediaFormat describes the audio. encoding names the codec and sampleRate is in hertz. channels is the number of tracks; each media message still carries a single track.
• customParameters holds the custom parameters you set when you started the stream, if any.

Each media message carries one frame of one track:

{
  "event": "media",
  "sequenceNumber": "42",
  "media": {
    "track": "inbound",
    "chunk": "41",
    "timestamp": "820",
    "payload": "<BASE64_AUDIO>"
  }
}

• track is inbound, what the person on the call says, or outbound, what they hear.
• chunk counts frames on that track, starting at "1".
• timestamp is in milliseconds and advances one frame per message. Both tracks share it, so use it rather than arrival order to align or mix them.
• payload is the base64-encoded audio.

Choose a stream codec for the call

The stream has its own codec, separate from the codec the call uses. SignalWire converts the call’s audio to the stream’s codec before sending it to your server, and on a bidirectional stream converts the audio your server sends back into the call’s codec. When you don’t set codec, every stream uses PCMU, 8 kHz G.711 µ-law, whatever the call type.

A stream can’t carry more detail than the call does. Streaming a call that uses an 8 kHz codec at 16 kHz only resamples the same audio. Choose the stream codec from the call’s own codec:

Where the call’s codec comes from depends on the call type:

• Calls to and from phone numbers use a codec SignalWire sets, and the codecs settings in SWML have no effect on them. Stream them with the default PCMU.
• SIP calls use a codec from the list your SIP endpoint or SIP Address allows. In SWML, codecs on answer or connect sets the codecs offered, for example G722 when you want wideband audio to stream.
• Browser SDK calls use WebRTC, and browsers support OPUS, so these calls can carry wideband audio.

Request L16 when your speech model expects linear PCM, at the sample rate the model wants, even on an 8 kHz call. Other codecs and packet-time modifiers are listed in the connect reference. SignalWire doesn’t start a stream whose codec it doesn’t accept.

A decoded payload is raw audio with no file header. Each frame is 20 ms by default: 160 bytes of PCMU, or 640 bytes of L16 at 16 kHz. L16 audio is 16-bit signed samples in little-endian byte order.

Stream options: track and custom parameters

track selects which side of the conversation a one-way stream sends. inbound_track, the default, is what the person on the call says; outbound_track is what they hear; both_tracks sends both, with each media message labeled by track. A bidirectional stream sends only the inbound track.

Two more settings connect a WebSocket to the rest of your application:

• custom_parameters is an object you set when you start the stream. Its keys arrive as start.customParameters, so pass your own session or customer IDs here rather than in the URL.
• authorization_bearer_token is sent as Authorization: Bearer <token> on the WebSocket handshake. Reject connections that don’t carry the token you expect.

Save call audio to a file

This server writes each track to its own file as audio arrives, so memory use stays flat on a long call. It closes the files when the stream stops or the connection drops. Run it in place of the stream server, then make the call from your first run again. Add track: both_tracks to the stream to get a second file with what the caller hears.

# Install: python -m pip install fastapi "uvicorn[standard]"
# Save as save_audio.py and run: python save_audio.py
import base64
import json
import uvicorn
from fastapi import FastAPI, WebSocket
app = FastAPI()
@app.websocket("/stream")
async def stream(websocket: WebSocket):
    await websocket.accept()
    files = {}
    try:
        async for message in websocket.iter_text():
            event = json.loads(message)
            if event["event"] == "start":
                stream_sid = event["start"]["streamSid"]
                for track in event["start"]["tracks"]:
                    files[track] = open(f"{stream_sid}-{track}.ulaw", "wb")
                print(f"Recording stream {stream_sid}")
            elif event["event"] == "media":
                audio = base64.b64decode(event["media"]["payload"])
                files[event["media"]["track"]].write(audio)
            elif event["event"] == "stop":
                break
    finally:
        # Runs when the stream stops or the connection drops.
        for file in files.values():
            file.close()
            print(f"Saved {file.name}")
uvicorn.run(app, host="0.0.0.0", port=8080)

When the call ends, the server prints Saved with each file’s name. The files hold raw PCMU audio with no header. Convert one to WAV with ffmpeg to play it:

ffmpeg -f mulaw -ar 8000 -ac 1 -i <STREAM_SID>-inbound.ulaw inbound.wav

For an L16 stream, use -f s16le and the stream’s sample rate, such as -ar 16000. Audio from the moment before your server accepts the connection isn’t streamed, so a file can start a fraction of a second into the call.

Buffer audio for processing

Speech-to-text services, voice agents, and analytics usually want audio in fixed-size pieces rather than one media message at a time. Buffer each track by bytes, and hand a window to your processing whenever the buffer holds enough audio. With PCMU, one byte is one sample, so a one-second window is sampleRate bytes.

This server cuts one-second windows and measures each one’s loudness. Replace analyze with your processing, such as a request to a speech-to-text API.

# Install: python -m pip install fastapi "uvicorn[standard]"
# Save as process_audio.py and run: python process_audio.py
import base64
import json
import math
import uvicorn
from fastapi import FastAPI, WebSocket
app = FastAPI()
def mulaw_to_linear(value):
    # Decode one G.711 µ-law byte to a 16-bit sample.
    value = ~value & 0xFF
    exponent = (value >> 4) & 0x07
    sample = ((((value & 0x0F) << 3) + 0x84) << exponent) - 0x84
    return -sample if value & 0x80 else sample
def analyze(track, window):
    samples = [mulaw_to_linear(value) for value in window]
    rms = math.sqrt(sum(sample * sample for sample in samples) / len(samples))
    level = 20 * math.log10(max(rms, 1) / 32768)
    print(f"{track}: {level:.0f} dBFS")
@app.websocket("/stream")
async def stream(websocket: WebSocket):
    await websocket.accept()
    buffers = {}
    window_bytes = 8000
    async for message in websocket.iter_text():
        event = json.loads(message)
        if event["event"] == "start":
            window_bytes = event["start"]["mediaFormat"]["sampleRate"]
            buffers = {track: bytearray() for track in event["start"]["tracks"]}
        elif event["event"] == "media":
            track = event["media"]["track"]
            buffer = buffers[track]
            buffer += base64.b64decode(event["media"]["payload"])
            if len(buffer) >= window_bytes:
                analyze(track, bytes(buffer[:window_bytes]))
                del buffer[:window_bytes]
uvicorn.run(app, host="0.0.0.0", port=8080)

Run it in place of the stream server, make the call from your first run again, and speak. The server prints a line per second for each track, in dBFS, and the number rises toward zero while that side talks.

analyze runs inside the receive loop, which suits quick work like this. For slow work such as a network request, hand each window to a background task, so the server keeps reading audio while it waits. The decoder assumes the default PCMU codec. L16 audio is already linear 16-bit PCM, so skip the decoding and read two bytes per sample; a one-second window then holds sampleRate * 2 bytes.

Send audio back on a bidirectional stream

On a bidirectional stream, SignalWire plays the audio your server sends into the call. The stream’s realtime setting decides what happens to audio your server sends faster than it plays:

• realtime: false (the default): SignalWire queues the audio and plays it in order. The queue is bounded; once it fills, new audio and marks are dropped.
• realtime: true: SignalWire keeps the queue short and drops new audio while it backs up, so playback stays close to live.

In either mode, send audio in small chunks at about the rate it plays. Sending an entire file at once fills the queue, and a very large backlog ends the stream.

Messages your server sends back

Your server sends JSON messages to SignalWire on the same connection. Include the streamSid from the start message on each one, as the samples do.

{
  "event": "media",
  "streamSid": "<STREAM_SID_FROM_START>",
  "media": { "payload": "<BASE64_AUDIO>" }
}

Play your own audio into the call

To play audio your server produces, such as a recorded prompt or text-to-speech output, convert it to the stream’s codec, split it into frames, and send each frame as a media message. This server plays a prompt when the stream starts, lets the caller skip it with any key, and closes the connection once the prompt has finished or been skipped.

The server sends 160-byte frames of 8 kHz µ-law audio about every 20 ms. After the final frame, it sends a mark and waits for the acknowledgment before closing. On a key press, it stops sending, sends clear, and closes. Receiving continues while audio plays.

Convert your prompt to raw 8 kHz µ-law with no header first, for example with ffmpeg -i prompt.mp3 -ar 8000 -ac 1 -f mulaw prompt.ulaw, and save prompt.ulaw next to the server.

# Install: python -m pip install fastapi "uvicorn[standard]"
# Save as play_audio.py next to prompt.ulaw and run: python play_audio.py
import asyncio
import base64
import json
import uvicorn
from fastapi import FastAPI, WebSocket
app = FastAPI()
FRAME_BYTES = 160  # 20 ms of 8 kHz µ-law audio
with open("prompt.ulaw", "rb") as prompt_file:
    PROMPT = prompt_file.read()
async def play(websocket, stream_sid, audio):
    for offset in range(0, len(audio), FRAME_BYTES):
        frame = audio[offset:offset + FRAME_BYTES]
        await websocket.send_text(json.dumps({
            "event": "media",
            "streamSid": stream_sid,
            "media": {"payload": base64.b64encode(frame).decode()},
        }))
        # Send one frame every 20 ms, the rate it plays.
        await asyncio.sleep(0.02)
    # SignalWire sends this mark back once everything before it has played.
    await websocket.send_text(json.dumps({
        "event": "mark",
        "streamSid": stream_sid,
        "mark": {"name": "prompt-done"},
    }))
@app.websocket("/stream")
async def stream(websocket: WebSocket):
    await websocket.accept()
    stream_sid = None
    player = None
    try:
        async for message in websocket.iter_text():
            event = json.loads(message)
            if event["event"] == "start":
                stream_sid = event["start"]["streamSid"]
                player = asyncio.create_task(play(websocket, stream_sid, PROMPT))
            elif event["event"] == "dtmf" and player:
                # Any key skips the prompt: stop sending, then drop what is queued.
                player.cancel()
                await websocket.send_text(json.dumps({"event": "clear", "streamSid": stream_sid}))
                print(f"Prompt skipped with {event['dtmf']['digit']}")
                break
            elif event["event"] == "mark" and event["mark"]["name"] == "prompt-done":
                print("Prompt finished")
                break
    finally:
        if player:
            player.cancel()
    await websocket.close()
uvicorn.run(app, host="0.0.0.0", port=8080)

Run it in place of the echo server, then make your Talk back call again. You hear the announcement, then your prompt. Let it finish, or press a key to cut it short; either way the server prints the outcome and closes the connection, and the call hangs up.

Troubleshoot call streaming

Find the symptom you see:

• The call plays normally, but your server prints nothing. SignalWire couldn’t reach your stream URL, and the call carried on without a stream. Check that the URL begins with wss:// and ends with /stream, and that the tunnel is running and points at port 8080. A Relay program reports the same problem on a bidirectional stream as the failed connect state.
• You hear an error or silence when you call your number. SignalWire couldn’t fetch your SWML. Rerun the curl check with the exact URL in the SWML Script, and confirm that the server and the tunnel are still running. A 401 means the password in the URL doesn’t match the server’s.
• You hear your number’s old behavior. The number still points at another Resource. Open it under Phone Numbers and check Inbound Call Settings.
• The phone never rings, or the call doesn’t connect. Check that <YOUR_CALLER_ID> is a number in your Space or a verified caller ID. A trial project only calls and receives calls from verified numbers.
• You hear silence on a bidirectional stream. Check that the call uses connect, or a stream device in Relay, rather than a one-way stream, which ignores anything your server sends.
• Your prompt plays as loud static. The audio has a file header, or isn’t in the stream’s codec. Convert it to raw 8 kHz µ-law, as Play your own audio into the call shows.
