Forwarding calls

In Making and receiving phone calls we learned how to use SWML to define what should happen when a call is received by one of your SignalWire numbers. In that case, we just played some audio. In this article, instead, we will use the same technique to forward the call to a different number.

SWML for call forwarding

We are going to define the forwarding instructions in a SWML Script hosted on SignalWire. To create a new SWML Script, navigate to the Resources section from your sidebar. There, create a new Script, and select the SWML Script option.

Creating your call forwarding Script

Once you are in the menu for creating a SWML Script, copy and paste the following Script:

1
version: 1.0.0
2
sections:
3
  main:
4
    - connect:
5
        from: "%{call.from}"
6
        to: "+15551234567"

This Script will handle the call by making an outbound dial, setting the from address to be the address which created the initial call, and then forwarding that call to the number specified in the to field.

We used the connect method to call the number you would like the call to be forwarded to. Notice how we used its from parameter to ensure that the number of the original caller (stored in the call.from variable) is maintained as caller ID for the forwarded call.

Assigning the Script to a SignalWire phone number

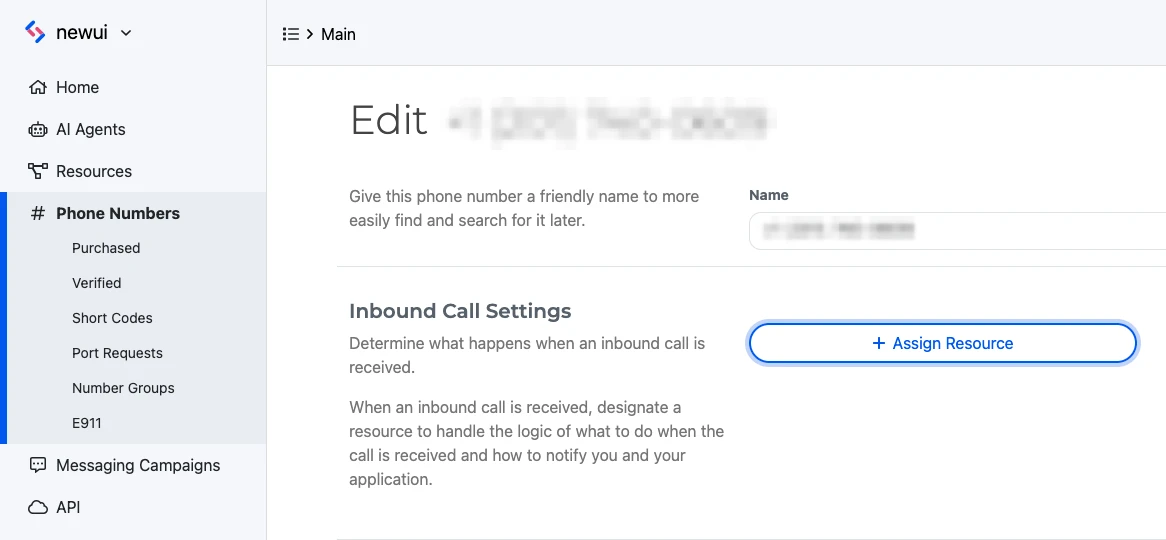

The final step is to configure one of your SignalWire phone numbers to answer calls using the SWML Script we just created. You can do that from the Phone Numbers section:

After clicking on the Phone Numbers section, click on the phone number that you’d like to assign, then click edit settings. From there, click Assign Resource and assign the newly created SWML Script. Now any calls that are routed to that number will be forwarded, with the caller ID being the original number that called in.

Conclusion

You are now ready to test call forwarding.

SWML Scripts offer a quick and easy way to get started with common use cases. If you are an advanced developer, or you need more flexibility and real-time control on your calls, you may be interested in our guide about how to make and receive calls in Node.js.
